SV-125 Small Spray Valve
Small spray valves have a flow rate of around 500liters per minute. These valves work well as rear and batter sprays. Available in a range of base options.
Australian Owned
Same Day Dispatch
40 Years of Experience
Our SV-125 small spray valve is the go-to in the industry. Reliable, lightweight and available in a range of base options.
The SV-125 work great with a wide range of pumps from 5Hp firefighting pumps all the way up to our 30HP hydraulic XHD water pumps.

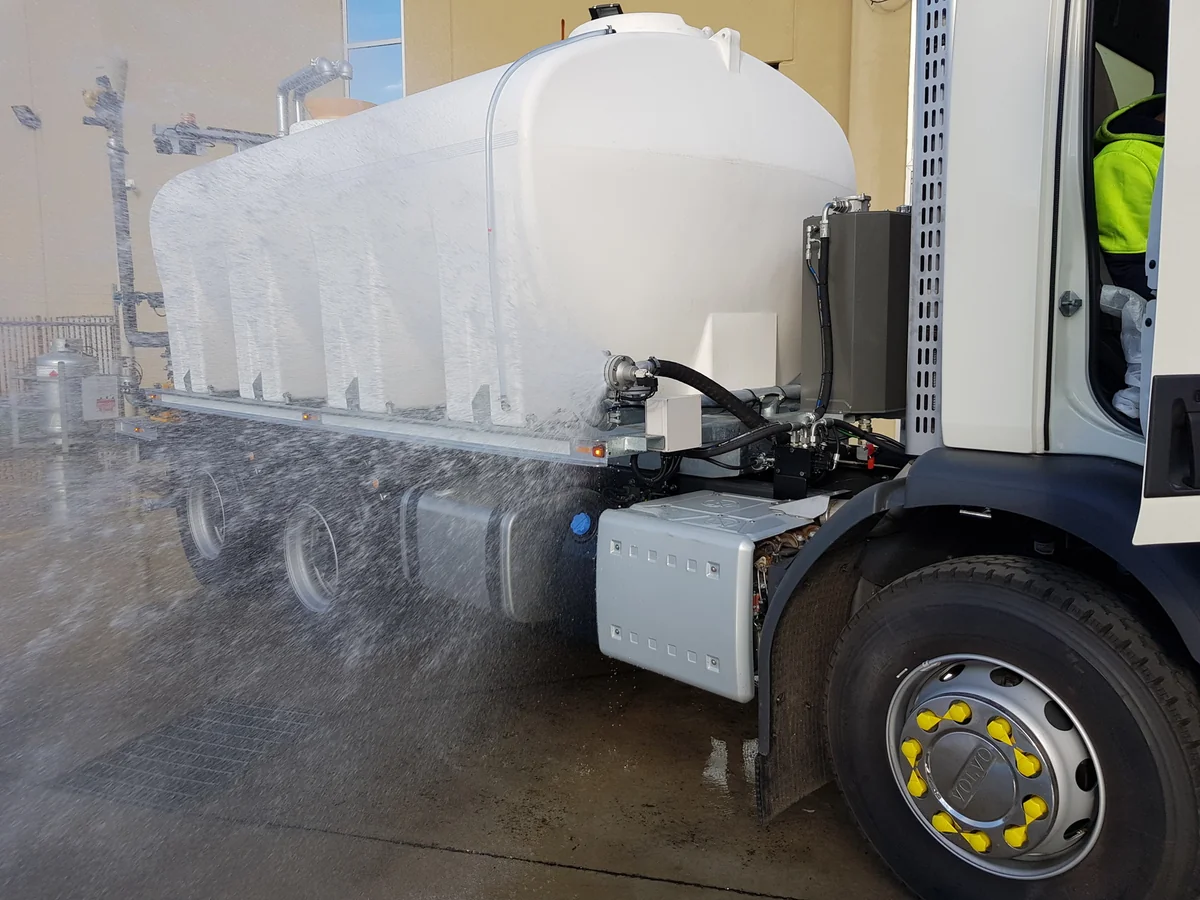

Rear Spray, Batter Spray or Front/ Road spray, The SV125 can function in any configuration.
Adding to the SV125's versatility in an adjustable spray band that allows you to control the spray width up to 90 degrees and the depth of the water outlet giving you control of the flow rate.
Features
- Compact Design - Easy to Install
- Manufactured from Marine Grade Aluminium

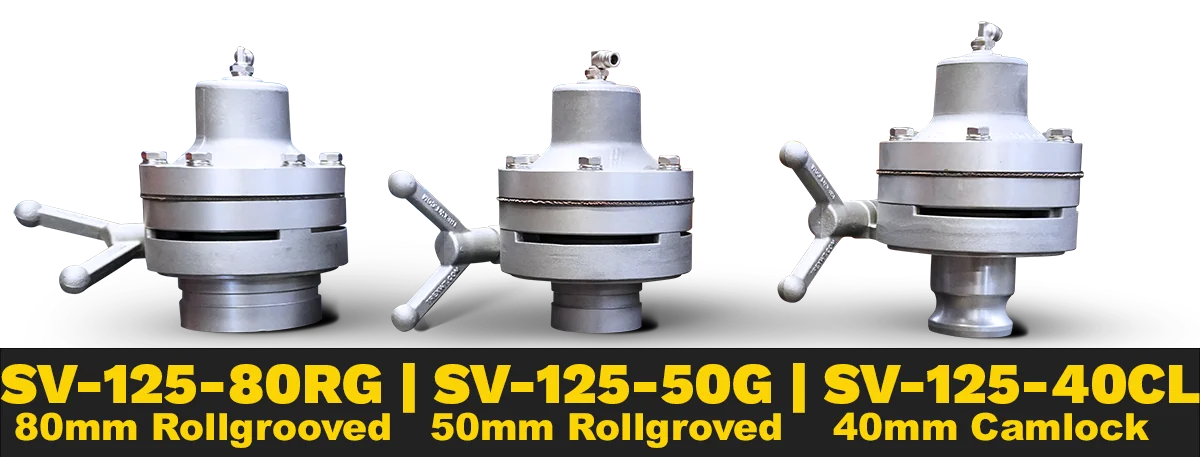

- Base Options to Fit 40, 50, and 80mm Pipe
- Integrated Shutoff Valve.
- Flow Rate up to 500 Liters Per Minute
- Spray Pattern can be Adjusted up to 90 Degrees.
Something to keep in mind, The SV125 Spray Valve (sometimes called a spray head) has an integrated diaphragm valve. This valve is normally open and as such needs air pressure to remain closed. There is also a spring above the diaphragm that maintained a constant pressure keeping the valve closed even when air is not present. This spring requires 20PSI of water pressure pushing against it to open.
This spring has two functions, One to keep the valve closed when the water tank is full of water but the truck no longer has air pressure, Two to provide constant back pressure with mountains an even flow when multiple spray valves are open at the same time.
| Connection Type | 40mm | 1.5" | Male Camlock or 50mm | 2" | Roll Grooved or 80mm | 3" | Male Camlock or 80mm | 3" | Roll Grooved |
| SKU | SV-125-40CL |
| Shipping Weight | 2.5 kg |
| Shipping Dimensions (L x W x H) | 16 cm x 15 cm x 20 cm |
| Package Volume | 0.0048 m³ |
