Male Branch Tee Push Fit
Australian Owned
Same Day Dispatch
40 Years of Experience

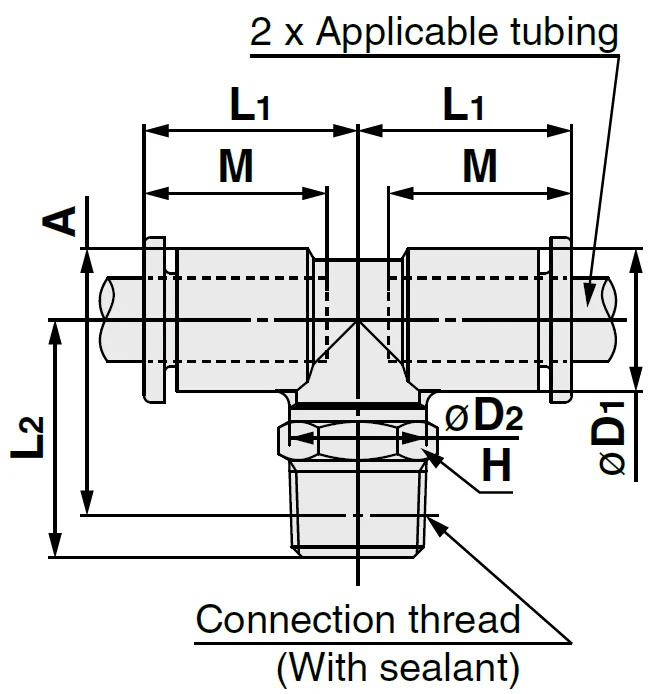

| Applicable tubing | Connection thread | H (Width Across Flats) |
øD1 | Release Button Dimensions | øD2 | Ll | 1-2 | M | Effective Area mm2 | Min. Port Size | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X | Y | Nylon | Urethane | |||||||||||
| ø3.2 | 1/8 | 10 | 7.1 | 6.7 | 9.5 | 10 | 14.5 | 16.6 | 17.1 | 13.3 | 3.4 | 2.9 | 2.5 | |
| 1/4 | 14 | 7.1 | 6.7 | 9.5 | 10 | 14.5 | 21.1 | 20 | 13.3 | 3.4 | 2.9 | 2.5 | 14.7 | |
| ø4 | 1/8 | 10 | 8.2 | 7.7 | 10 | 10 | 14.8 | 16.2 | 17.2 | 13.3 | 6 | 4.1 | 3 | 5.5 |
| 1/4 | 14 | 8.2 | 7.7 | 10 | 10 | 14.8 | 21 .7 | 21 .1 | 13.3 | 6 | 4.1 | 3 | 15 | |
| ø6 | 1/8 | 10 | 10.4 | 9.7 | 12 | 10 | 15.5 | 17.3 | 1 9.4 | 13.3 | 13.9 | 1 1 | 4.5 | |
| 1/4 | 14 | 10.4 | 9.7 | 12 | 10 | 15.5 | 22.8 | 23.3 | 13.3 | 13.9 | 1 1 | 4.5 | 15.6 | |
| 3/8 | 17 | 10.4 | 9.7 | 12 | 10 | 15.5 | 24.1 | 24.2 | 13.3 | 13.9 | 1 1 | 4.5 | 27 4 | |
| OD Tube Size | 4mm or 6mm |
| Thread Size | 1/8 BSPT or 1/4 BSPT |
| SKU | AF-KQ2T04-01NS |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions (L x W x H) | 2 cm x 2 cm x 2 cm |
| Package Volume | 8e-06 m³ |
