H360XD Hydraulic Extreme Duty Water Cannon

Introducing the H360XD from T-Rex. The H360XD has been designed to provide unmatched reliability for extreme offroad conditions.

Designed and manufactured in Melbourne, Australia, the H360XD has been developed for the uniquely harsh environments found in Australia. The H360XD is driven by small high torq hydraulic motors which provide smooth operation

Enjoy peace of mind knowing our team of experts will be able to help guide you on the right options for your application. If you need any technical information or parts, the team who design and build the H360XD are based in Australia and are only a phone call away.

Nozzle Options

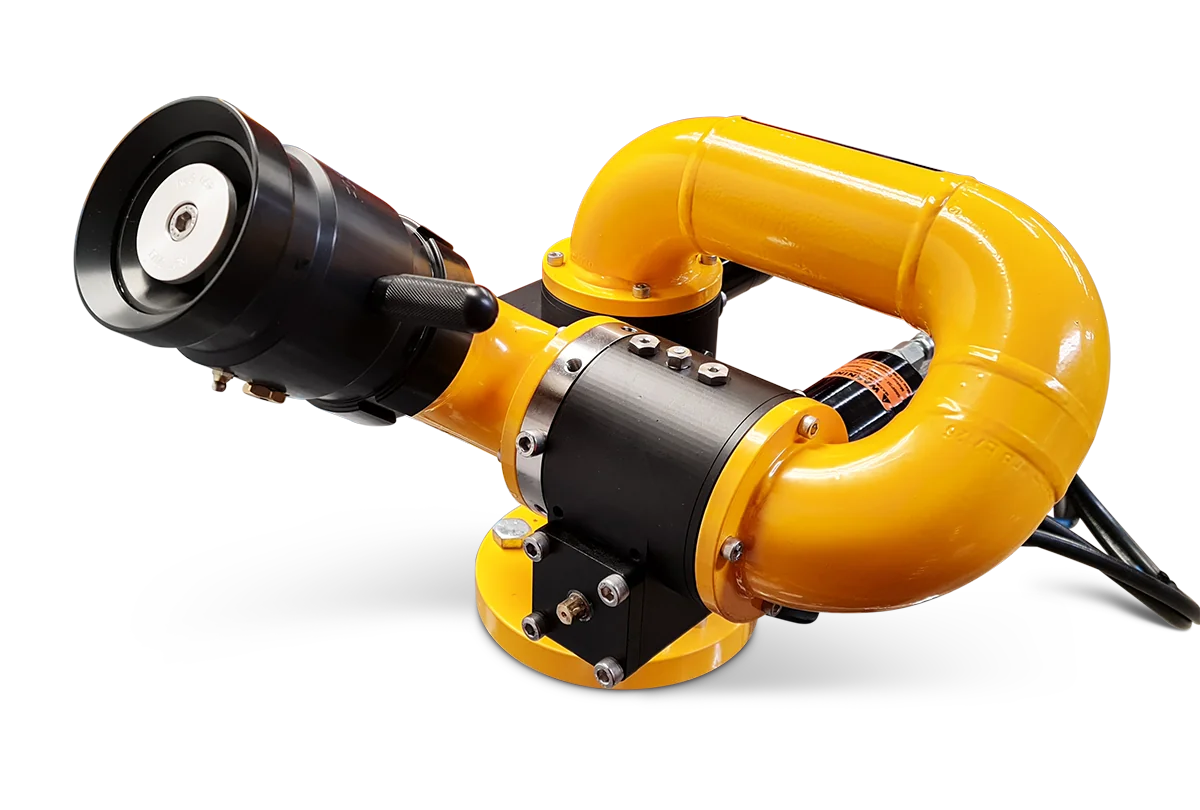

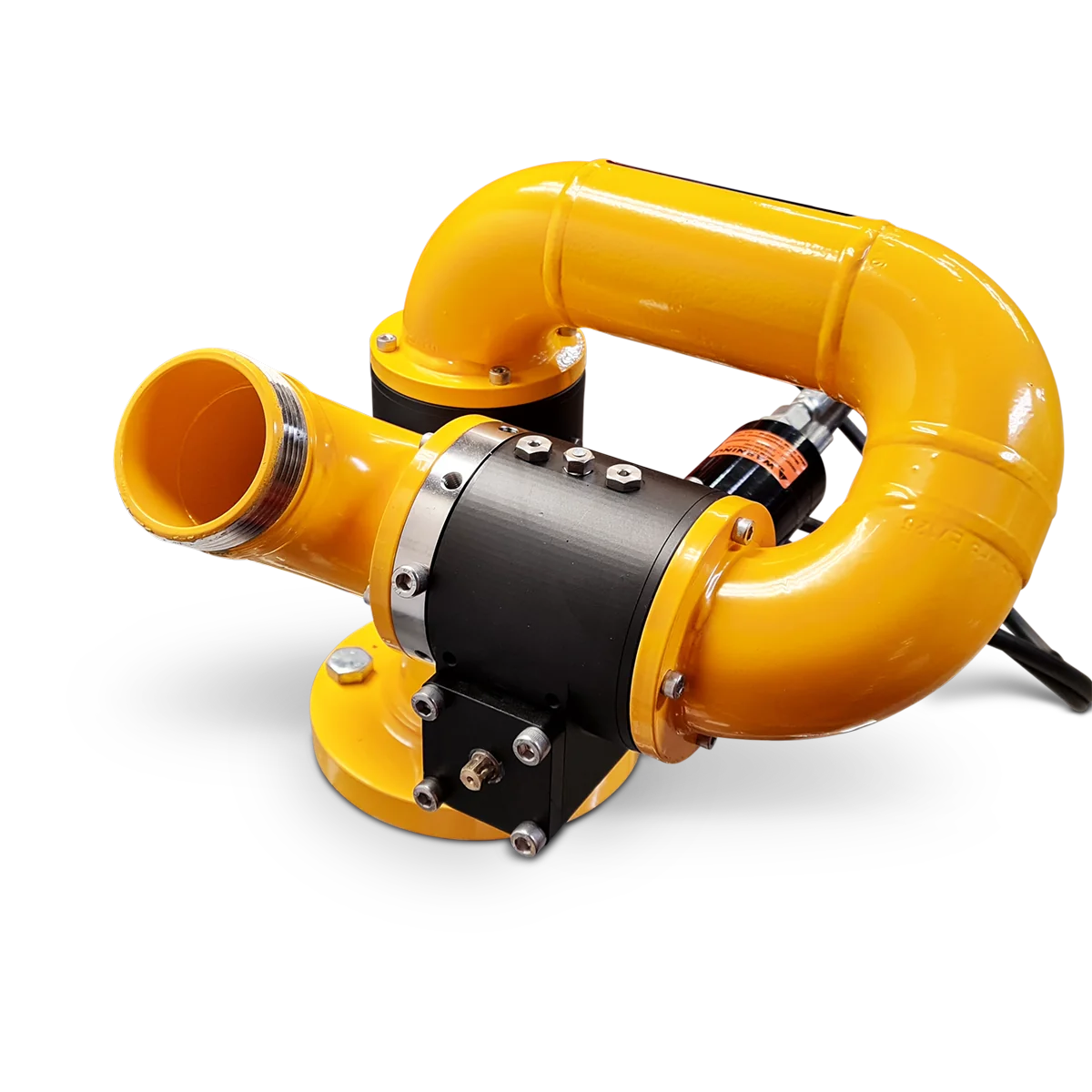

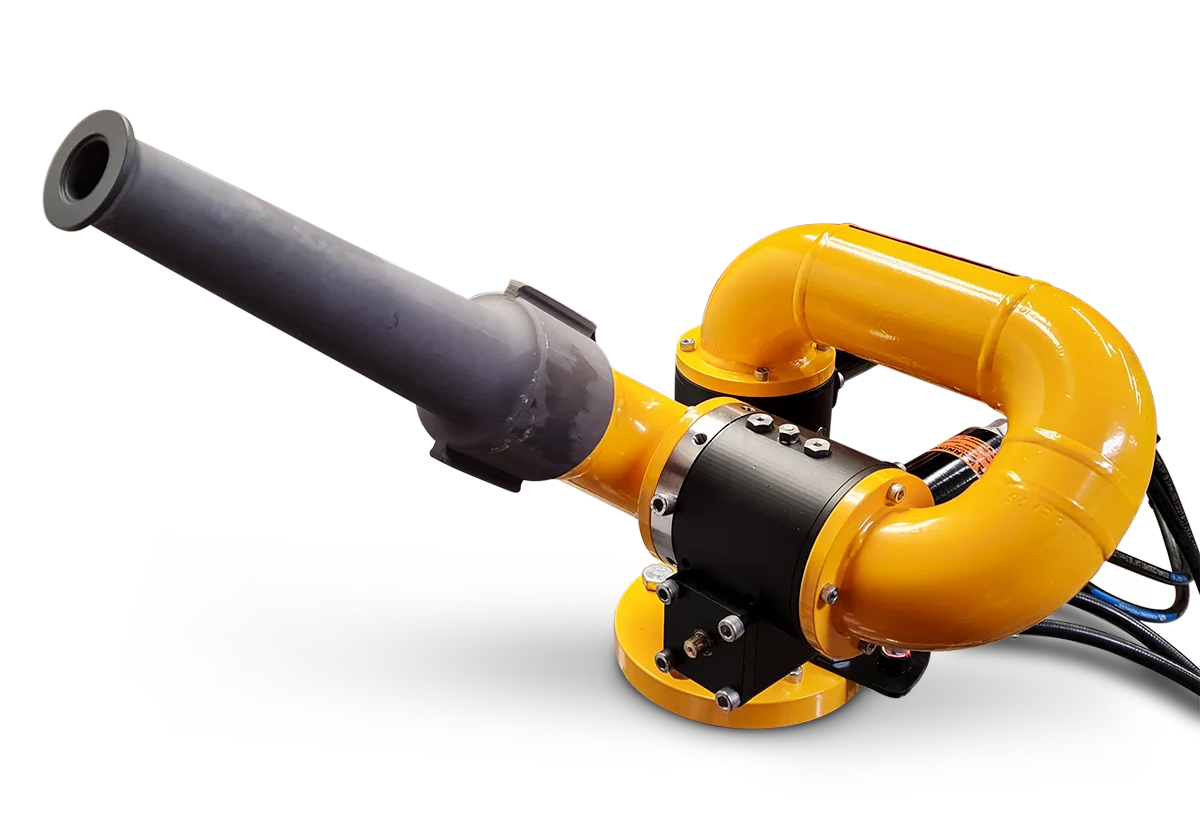

Without Nozzle	Straight Nozzle	Manual Controlled Fog Nozzle

Features

• Up to 350 Degrees of horizontal movement

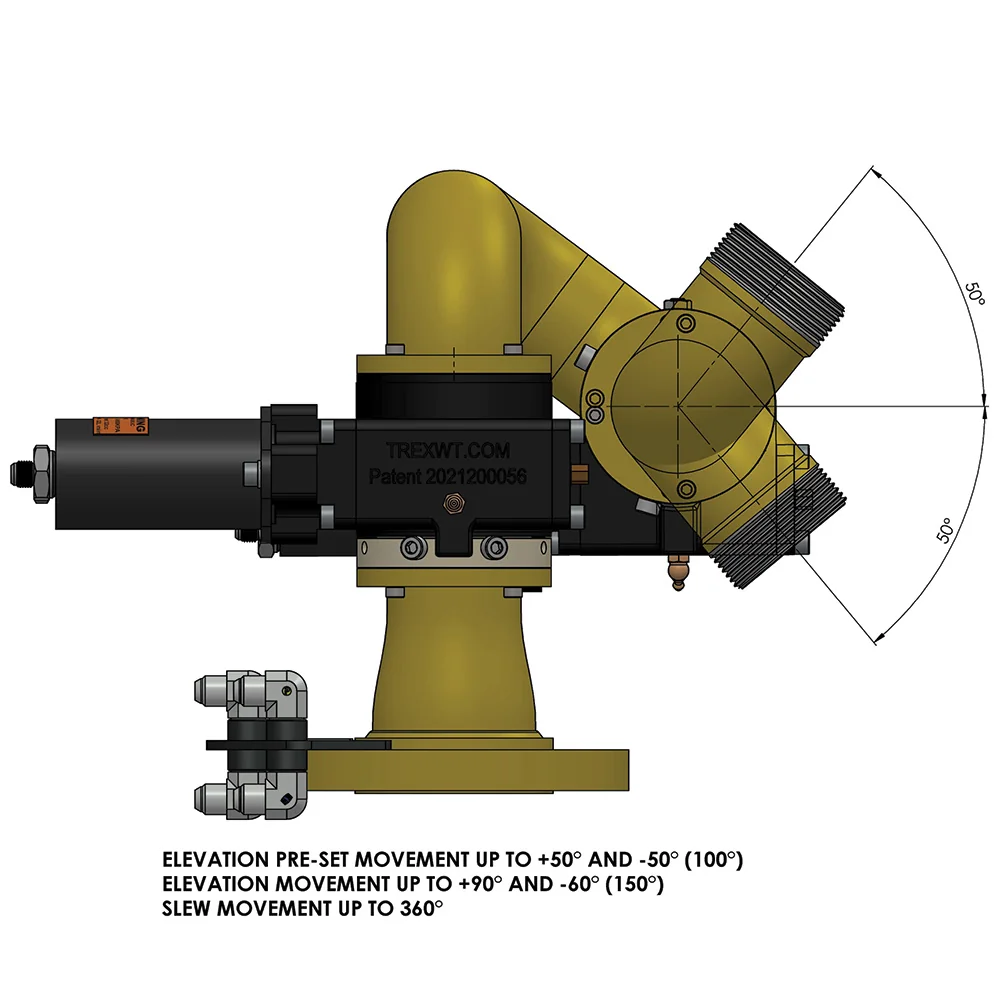

• Up to 150 Degrees of vertical movement
• Compact, low-profile design
• 65mm (2.5 inch) ID waterway
• Low Maintenance Design
• Stainless steel 316 bearing element
• Hardened bearing and sealing surfaces, Rockwell 70

The advantages of the H360XD Water Cannon

Durable Hydraulic Drive The H360XD is driven by high torque low flow hydraulic motors.

Simple Plumbing The H360XD includes a bulkhead plate and 4X hoses which connect between the motors and the bulkhead plate.

Low Profile Design The H360XD features a low profile design with a low centre of gravity.

Easy Installation The H360XD is available with a range in mounting options. Standard 3"ANSI 150LB flange inlet. 2.5"ANSI 150LB Option, 3" grooved Option.

Long, trouble-free life Our innovative swivel design uses low friction rotary seals that last for years and a direct meshing worm drive provides smooth high torque operation.

Adjustable Limit Positions Easily customise the travel range of the H360XD to suit your applications. You can adjust travel limits in 45-degree increments.

What you will need.

A pressure outlet with a 3 inch ANSI or Table E Flange. (2.5-inch option)

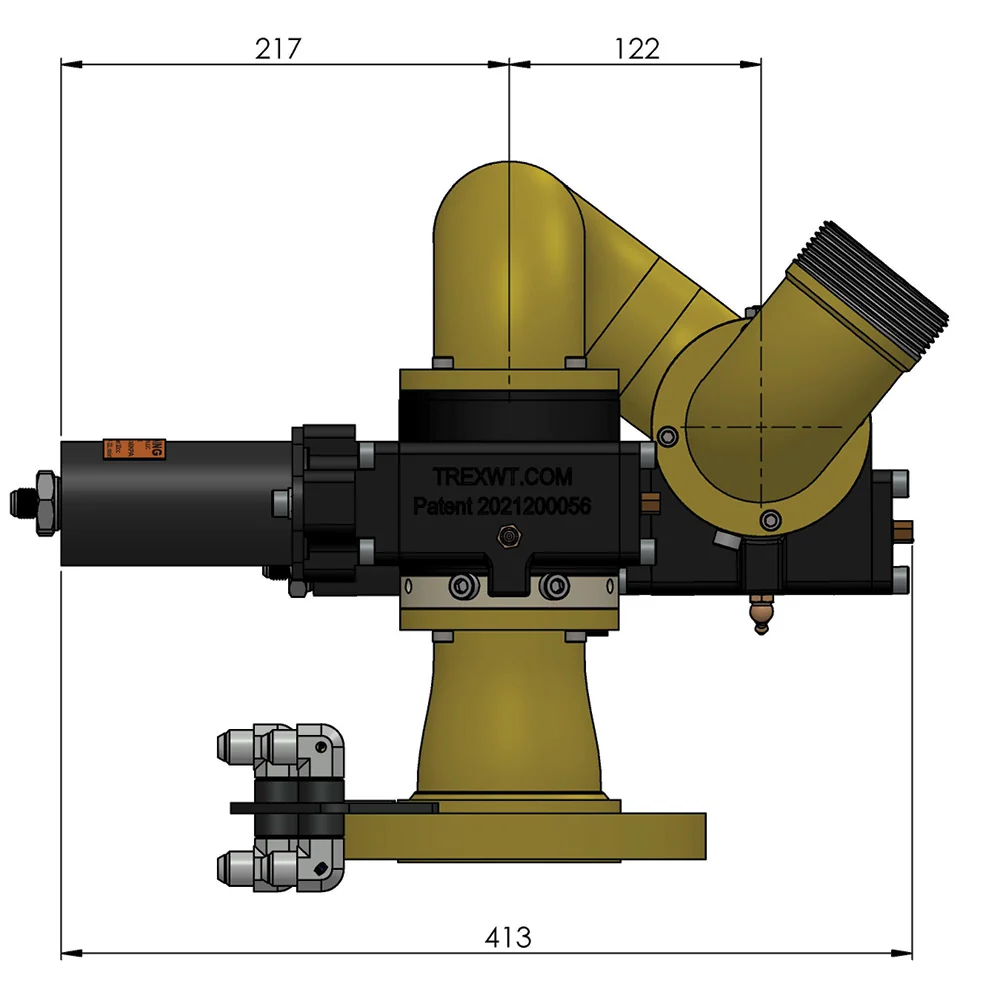

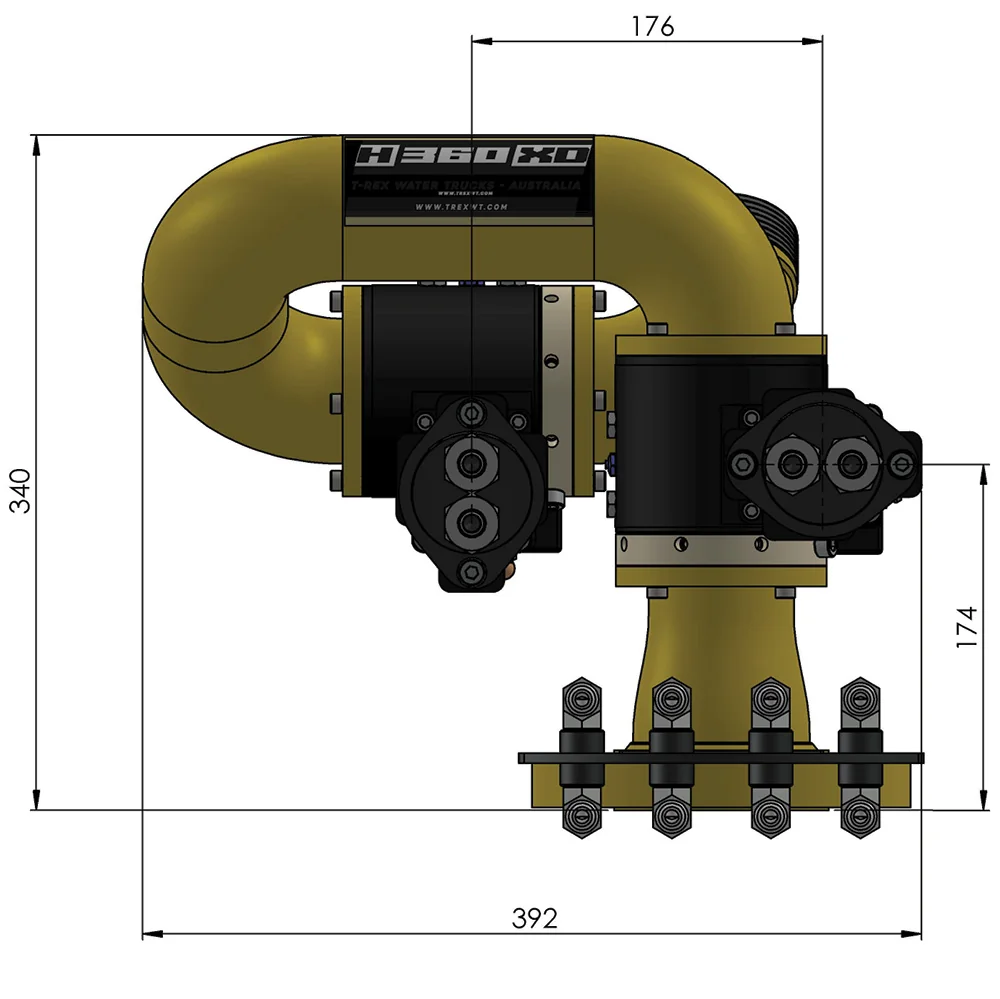

Size and Dimensions
