Bulkhead Union
Australian Owned
Same Day Dispatch
40 Years of Experience

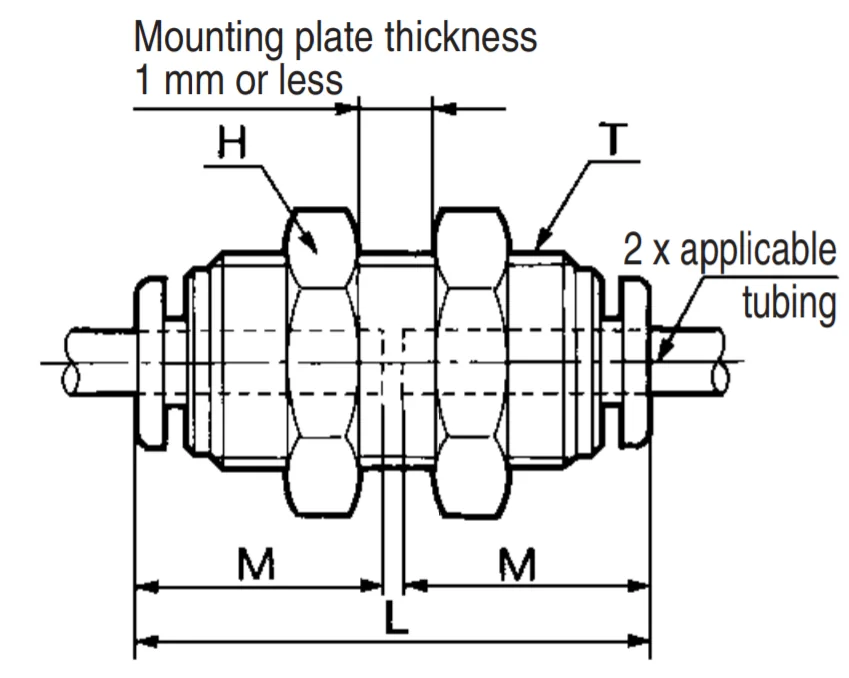

| Applicable tubing O.D.(mm) | Model | T (M) |
H (Width Across Flats) |
L | Mounting Hole |
M | Effective Area mm2 | Mass (g) |
|
|---|---|---|---|---|---|---|---|---|---|
| Nylon | Urethane | ||||||||
| 3.2 | AF-KQ2E23-00 | M12 x 1 | 14 | 31.5 | 13 | 15.5 | 3.4 | 2.9 | 26 |
| 4 | AF-KQ2E04-00 | M12 x 1 | 14 | 32.5 | 13 | 16 | 5.6 | 4 | 26 |
| 6 | AF-KQ2E06-00 | M14 x 1 | 17 | 34.5 | 15 | 17 | 13.1 | 10.4 | 33 |
| 8 | AF-KQ2E08-00 | M16 x 1 | 19 | 38 | 17 | 18.5 | 26.1 | 18.0 | 52 |
| 10 | AF-KQ2E10-00 | M20 x 1 | 24 | 42.5 | 21 | 21 | 41.5 | 29.5 | 70 |
| 12 | AF-KQ2E12-00 | M22 x 1 | 27 | 44 | 23 | 22 | 58.3 | 46.1 | 90 |
| 16 | AF-KQ2E16-00 | M28 x 1.5 | 32 | 51 | 29 | 25 | 113 | (96) | 115 |
| OD Tube Size | 4mm or 6mm or 8mm |
| SKU | AF-BH-6 |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions (L x W x H) | 1 cm x 1 cm x 1 cm |
| Package Volume | 1e-06 m³ |
