M22 10K Potentiometer. Heavy duty
At a glance
Ships in 2 days

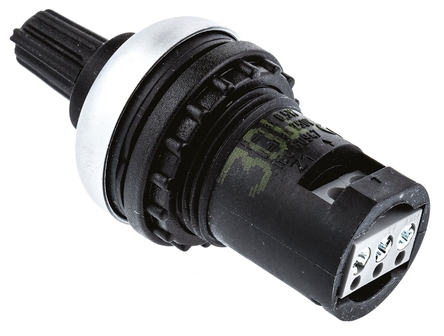

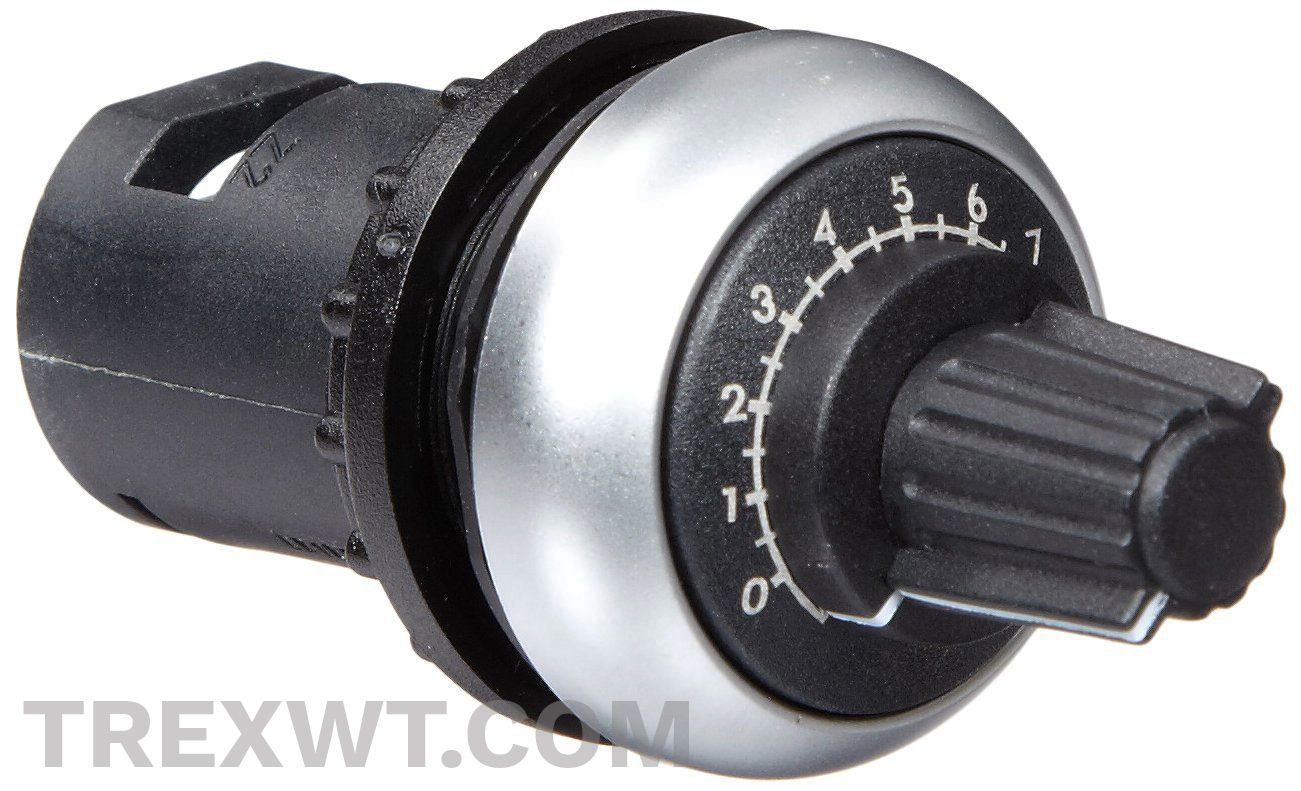

M22 10k Potentiometer (Heavy-Duty)
Eaton’s Rotary Potentiometers enable a user to regulate and change the current that flows through a circuit, these rotary potentiometers can be easily controlled through turning the spindle or knob.
Features & Benefits
- Panel Mounting
- Rotary Action Twist to Set Value
- IP66 Rating
- Selection of Ranges
What is a Potentiometer?
A potentiometer is a variable resistor which increases or decreases the resistance in an application. Usually available as either digital or analogue, there are two main types of potentiometers, rotary and linear.
- Linear - comes in a rectangle strip shape and can be pulled up or down for the required resistance, used a lot within sound systems for mic output or volume control.
- Rotary - the shaft is housed by a knob, you would find these on dimmer switches or speakers, and turning (usually to the right) will increase the resistance amplifying the output, whether that is light, sound or voltage.
How do Potentiometers Work?
Potentiometers have two terminals that are fixed to a resistive element (the track). The resistive element is typically wire wound or made from carbon, cermet or conductive plastic. The third terminal is connected to the wiper, which is a sliding contact. As the wiper moves along the track, the resistance changes and the current flowing through the circuit changes.
Approvals
UL, CSA.
Standards
IEC/EN60947.
Express Post - AUD$27.27
| SKU | CS-PD-10 |
| Model # | M22-R10K |
| Barcode # | 4.01508E+12 |
| Brand | EATON |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.030m |
| Shipping Height | 0.030m |
| Shipping Length | 0.030m |
| Shipping Cubic | 0.000027000m3 |
| Unit Of Measure | ea |
M22 10k Potentiometer (Heavy-Duty)
Eaton’s Rotary Potentiometers enable a user to regulate and change the current that flows through a circuit, these rotary potentiometers can be easily controlled through turning the spindle or knob.
Features & Benefits
- Panel Mounting
- Rotary Action Twist to Set Value
- IP66 Rating
- Selection of Ranges
What is a Potentiometer?
A potentiometer is a variable resistor which increases or decreases the resistance in an application. Usually available as either digital or analogue, there are two main types of potentiometers, rotary and linear.
- Linear - comes in a rectangle strip shape and can be pulled up or down for the required resistance, used a lot within sound systems for mic output or volume control.
- Rotary - the shaft is housed by a knob, you would find these on dimmer switches or speakers, and turning (usually to the right) will increase the resistance amplifying the output, whether that is light, sound or voltage.
How do Potentiometers Work?
Potentiometers have two terminals that are fixed to a resistive element (the track). The resistive element is typically wire wound or made from carbon, cermet or conductive plastic. The third terminal is connected to the wiper, which is a sliding contact. As the wiper moves along the track, the resistance changes and the current flowing through the circuit changes.
Approvals
UL, CSA.
Standards
IEC/EN60947.
| SKU | CS-PD-10 |
| Model # | M22-R10K |
| Barcode # | 4.01508E+12 |
| Brand | EATON |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.030m |
| Shipping Height | 0.030m |
| Shipping Length | 0.030m |
| Shipping Cubic | 0.000027000m3 |
| Unit Of Measure | ea |
Express Post - AUD$27.27
